Bearing specifications

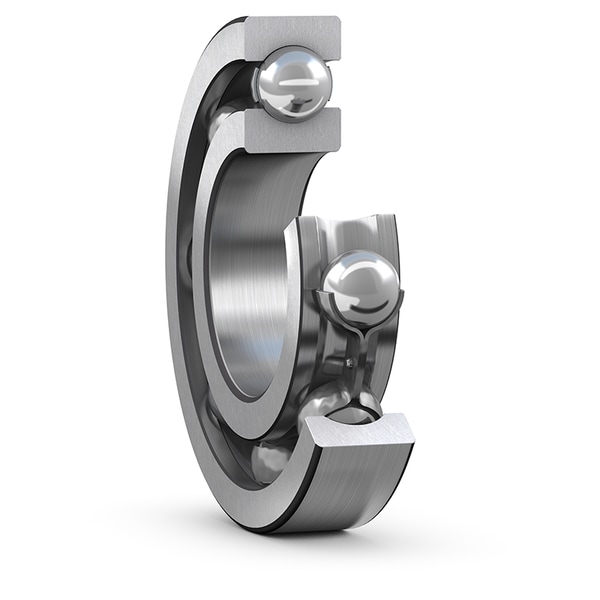

16013
Deep Groove Ball Bearing
- HCT SKU
- HCT-004514
- Series
- 16000
- Configuration
- Single row · Open · CN
- Bore (d) 65 mm
- Outside (D) 100 mm
- Width (B) 11 mm
- Dynamic load (C) 22.5 kN
pcs
Overview
HCT Bearings supplies the 16013 deep groove ball bearing (65 mm bore x 100 mm outside diameter x 11 mm width). Factory-direct sourcing with complete dimensional and load-rating data available on this page. Request a quote for volume pricing, lead time and availability.
Bearing designation
Designation breakdown for 16013.
- 16013 Basic designation series 16000 · bore code 13, 65 mm
Product information
Units
Dimensions and mass
| Bore diameter (d) | 65 mm |
|---|---|
| Outer diameter (D) | 100 mm |
| Width (B) | 11 mm |
Basic load ratings
| Dynamic load rating (C) | 22.5 kN |
|---|---|
| Static load rating (C0) | 19.6 kN |
Speeds
| Reference speed | 14 000 r/min |
|---|---|
| Limiting speed | 9 000 r/min |
Design and properties
- Seal / Shield
- Open
- Internal Clearance
- CN normal
- Cage
- Sheet metal
- Rows
- Single row
- Material
- Bearing steel
Converted values are shown for convenience only. The metric figures are the published data.
Specifications are provided for product selection and may vary by configuration. Please contact us for confirmation before ordering.
