Bearing specifications
6028

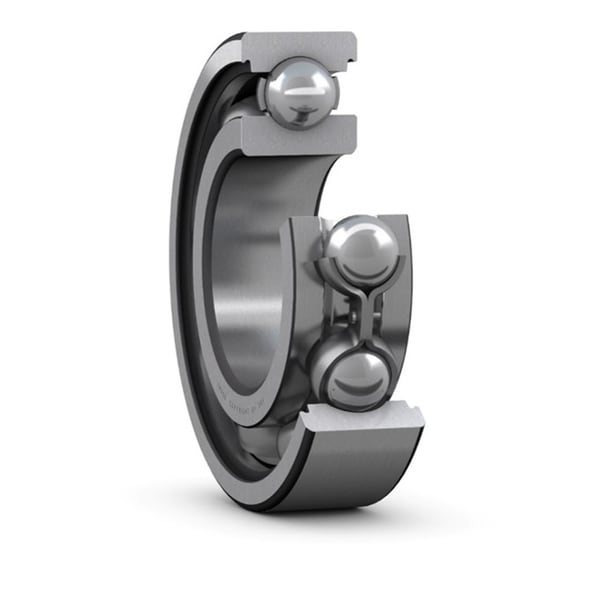

Deep Groove Ball Bearing
- HCT SKU
- HCT-005104
- Series
- 6000
- Configuration
- Single row · Open · CN
- Bore (d) 140 mm
- Outside (D) 210 mm
- Width (B) 33 mm
- Dynamic load (C) 111 kN
pcs
Overview
HCT Bearings supplies the 6028 deep groove ball bearing (140 mm bore x 210 mm outside diameter x 33 mm width). Factory-direct sourcing with complete dimensional and load-rating data available on this page. Request a quote for volume pricing, lead time and availability.
Bearing designation
Designation breakdown for 6028.
- 6028 Basic designation series 6000 · bore code 28, 140 mm
Product information
Units
Dimensions and mass
| Bore diameter (d) | 140 mm |
|---|---|
| Outer diameter (D) | 210 mm |
| Width (B) | 33 mm |
Basic load ratings
| Dynamic load rating (C) | 111 kN |
|---|---|
| Static load rating (C0) | 108 kN |
Speeds
| Reference speed | 6 700 r/min |
|---|---|
| Limiting speed | 4 000 r/min |
Design and properties
- Seal / Shield
- Open
- Internal Clearance
- CN normal
- Cage
- Sheet metal
- Rows
- Single row
- Material
- Bearing steel
Converted values are shown for convenience only. The metric figures are the published data.
Specifications are provided for product selection and may vary by configuration. Please contact us for confirmation before ordering.
