Bearing specifications

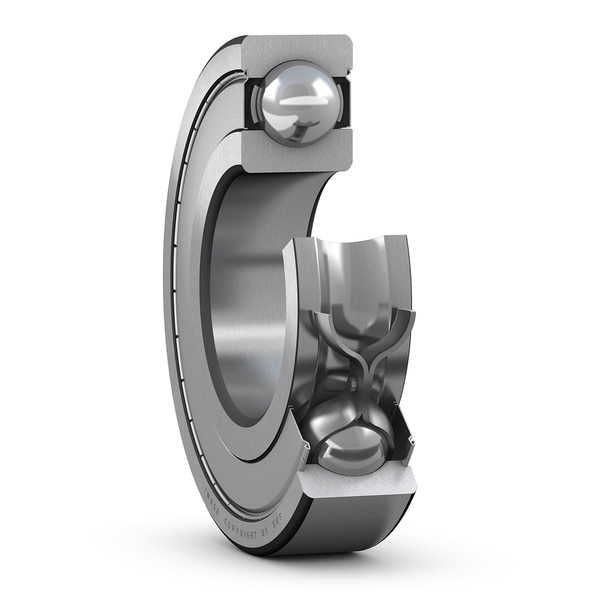

6218-2Z
Deep Groove Ball Bearing
- HCT SKU
- HCT-006635
- Series
- 6200
- Configuration
- Single row · CN
- Bore (d) 90 mm
- Outside (D) 160 mm
- Width (B) 30 mm
- Dynamic load (C) 101 kN
pcs
Overview
HCT Bearings supplies the 6218-2Z deep groove ball bearing (90 mm bore x 160 mm outside diameter x 30 mm width). Factory-direct sourcing with complete dimensional and load-rating data available on this page. Request a quote for volume pricing, lead time and availability.
Bearing designation
Designation breakdown for 6218-2Z.
- 6218 Basic designation series 6200 · bore code 18, 90 mm
- - 2Z —
Product information
Units
Dimensions and mass
| Bore diameter (d) | 90 mm |
|---|---|
| Outer diameter (D) | 160 mm |
| Width (B) | 30 mm |
Basic load ratings
| Dynamic load rating (C) | 101 kN |
|---|---|
| Static load rating (C0) | 73.5 kN |
Speeds
| Reference speed | 8 500 r/min |
|---|---|
| Limiting speed | 4 300 r/min |
Design and properties
- Internal Clearance
- CN normal
- Cage
- Sheet metal
- Rows
- Single row
- Material
- Bearing steel
Converted values are shown for convenience only. The metric figures are the published data.
Specifications are provided for product selection and may vary by configuration. Please contact us for confirmation before ordering.
