Bearing specifications
6219-2Z

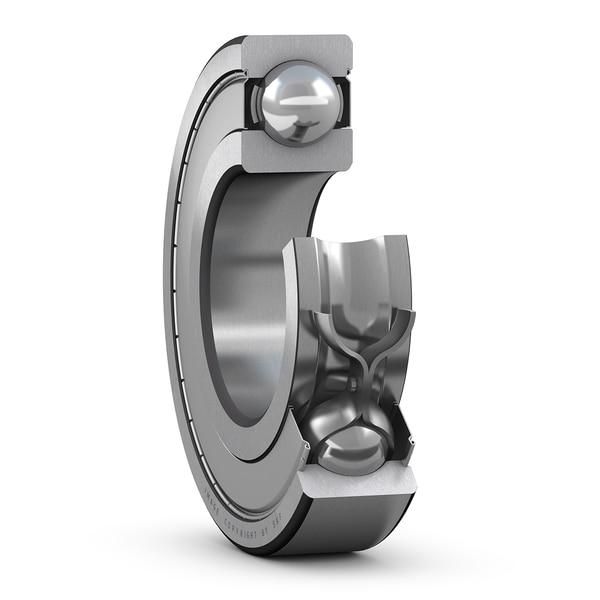

Deep Groove Ball Bearing
- HCT SKU
- HCT-006631
- Series
- 6200
- Configuration
- Single row · CN
- Bore (d) 95 mm
- Outside (D) 170 mm
- Width (B) 32 mm
- Dynamic load (C) 114 kN
pcs
Overview
HCT Bearings supplies the 6219-2Z deep groove ball bearing (95 mm bore x 170 mm outside diameter x 32 mm width). Factory-direct sourcing with complete dimensional and load-rating data available on this page. Request a quote for volume pricing, lead time and availability.
Bearing designation
Designation breakdown for 6219-2Z.
- 6219 Basic designation series 6200 · bore code 19, 95 mm
- - 2Z —
Product information
Units
Dimensions and mass
| Bore diameter (d) | 95 mm |
|---|---|
| Outer diameter (D) | 170 mm |
| Width (B) | 32 mm |
Basic load ratings
| Dynamic load rating (C) | 114 kN |
|---|---|
| Static load rating (C0) | 81.5 kN |
Speeds
| Reference speed | 8 000 r/min |
|---|---|
| Limiting speed | 4 000 r/min |
Design and properties
- Internal Clearance
- CN normal
- Cage
- Sheet metal
- Rows
- Single row
- Material
- Bearing steel
Converted values are shown for convenience only. The metric figures are the published data.
Specifications are provided for product selection and may vary by configuration. Please contact us for confirmation before ordering.
