Bearing specifications

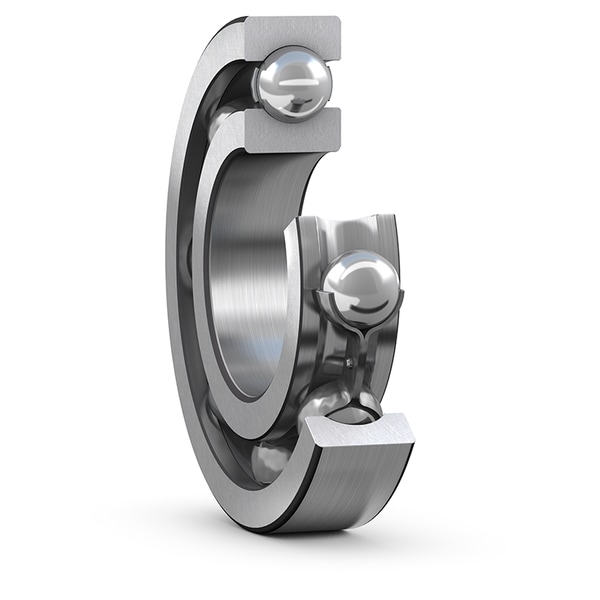

6232
Deep Groove Ball Bearing
- HCT SKU
- HCT-006820
- Series
- 6200
- Configuration
- Single row · Open · CN
- Bore (d) 160 mm
- Outside (D) 290 mm
- Width (B) 48 mm
- Dynamic load (C) 186 kN
pcs
Overview
HCT Bearings supplies the 6232 deep groove ball bearing (160 mm bore x 290 mm outside diameter x 48 mm width). Factory-direct sourcing with complete dimensional and load-rating data available on this page. Request a quote for volume pricing, lead time and availability.
Bearing designation
Designation breakdown for 6232.
- 6232 Basic designation series 6200 · bore code 32, 160 mm
Product information
Units
Dimensions and mass
| Bore diameter (d) | 160 mm |
|---|---|
| Outer diameter (D) | 290 mm |
| Width (B) | 48 mm |
Basic load ratings
| Dynamic load rating (C) | 186 kN |
|---|---|
| Static load rating (C0) | 186 kN |
Speeds
| Reference speed | 4 500 r/min |
|---|---|
| Limiting speed | 3 000 r/min |
Design and properties
- Seal / Shield
- Open
- Internal Clearance
- CN normal
- Rows
- Single row
- Material
- Bearing steel
Converted values are shown for convenience only. The metric figures are the published data.
Specifications are provided for product selection and may vary by configuration. Please contact us for confirmation before ordering.
