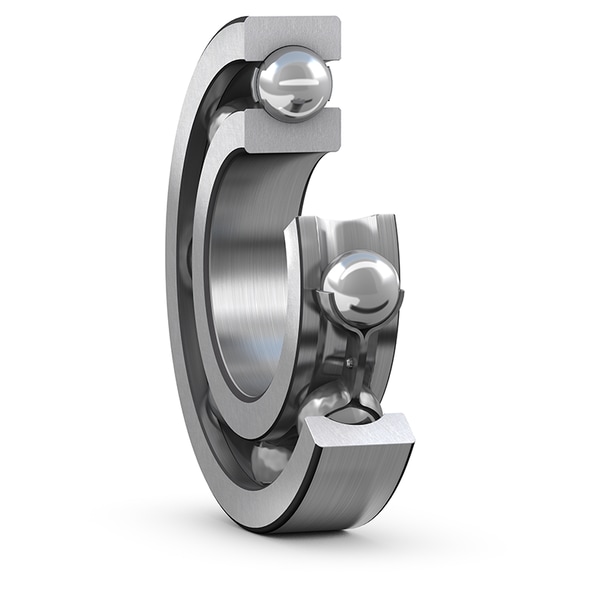

Open a larger view
Bearing specifications
6238
Deep Groove Ball Bearing
- HCT SKU
- HCT-006813
- Series
- 6200
- Configuration
- Single row · Open · CN
- Bore (d) 190 mm
- Outside (D) 340 mm
- Width (B) 55 mm
- Dynamic load (C) 255 kN
pcs
Overview
HCT Bearings supplies the 6238 deep groove ball bearing (190 mm bore x 340 mm outside diameter x 55 mm width). Factory-direct sourcing with complete dimensional and load-rating data available on this page. Request a quote for volume pricing, lead time and availability.
Bearing designation
Designation breakdown for 6238.
- 6238 Basic designation series 6200 · bore code 38, 190 mm
Product information
Units
Dimensions and mass
| Bore diameter (d) | 190 mm |
|---|---|
| Outer diameter (D) | 340 mm |
| Width (B) | 55 mm |
Basic load ratings
| Dynamic load rating (C) | 255 kN |
|---|---|
| Static load rating (C0) | 280 kN |
Speeds
| Reference speed | 3 800 r/min |
|---|---|
| Limiting speed | 2 400 r/min |
Design and properties
- Seal / Shield
- Open
- Internal Clearance
- CN normal
- Cage
- Sheet metal
- Rows
- Single row
- Material
- Bearing steel
Converted values are shown for convenience only. The metric figures are the published data.
Specifications are provided for product selection and may vary by configuration. Please contact us for confirmation before ordering.
