Bearing specifications

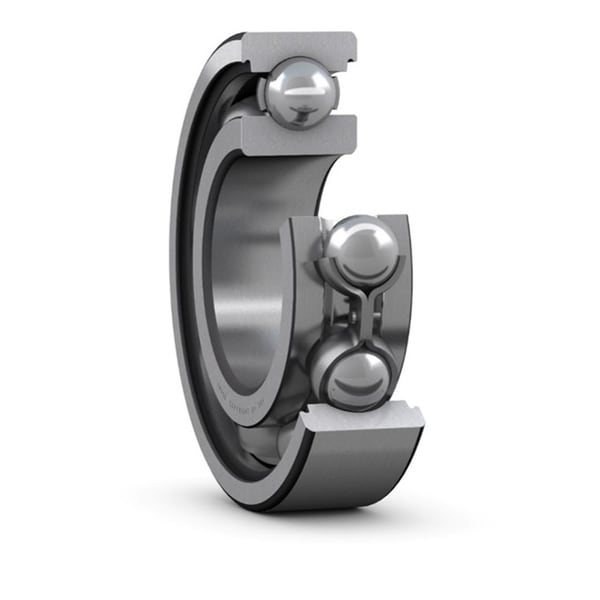

6309
Deep Groove Ball Bearing
- HCT SKU
- HCT-000264
- Series
- 6300
- Configuration
- Single row · Open · CN
- Bore (d) 45 mm
- Outside (D) 100 mm
- Width (B) 25 mm
- Dynamic load (C) 55.3 kN
pcs
Overview
HCT Bearings supplies the 6309 deep groove ball bearing (45 mm bore x 100 mm outside diameter x 25 mm width). Factory-direct sourcing with complete dimensional and load-rating data available on this page. Request a quote for volume pricing, lead time and availability.
Bearing designation
Designation breakdown for 6309.
- 6309 Basic designation series 6300 · bore code 09, 45 mm
Product information
Units
Dimensions and mass
| Bore diameter (d) | 45 mm |
|---|---|
| Outer diameter (D) | 100 mm |
| Width (B) | 25 mm |
Basic load ratings
| Dynamic load rating (C) | 55.3 kN |
|---|---|
| Static load rating (C0) | 31.5 kN |
Speeds
| Reference speed | 15 000 r/min |
|---|---|
| Limiting speed | 9 500 r/min |
Design and properties
- Seal / Shield
- Open
- Internal Clearance
- CN normal
- Cage
- Sheet metal
- Rows
- Single row
- Material
- Bearing steel
Converted values are shown for convenience only. The metric figures are the published data.
Specifications are provided for product selection and may vary by configuration. Please contact us for confirmation before ordering.
