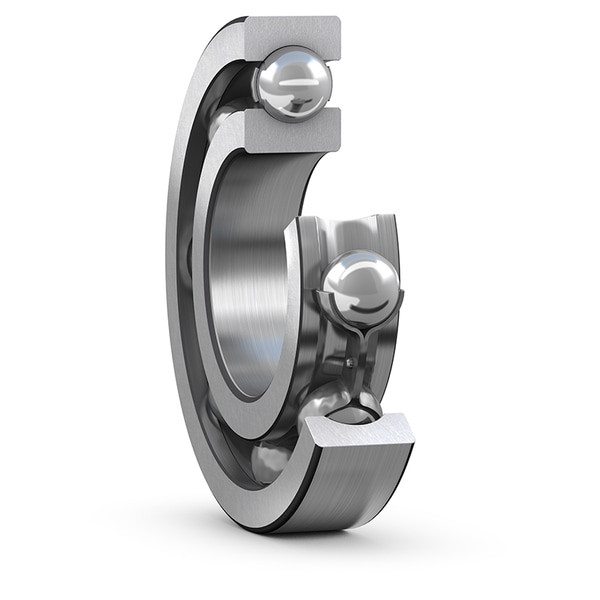

Open a larger view
Bearing specifications
6330
Deep Groove Ball Bearing
- HCT SKU
- HCT-007852
- Series
- 6300
- Configuration
- Single row · Open · CN
- Bore (d) 150 mm
- Outside (D) 320 mm
- Width (B) 65 mm
- Dynamic load (C) 276 kN
pcs
Overview
HCT Bearings supplies the 6330 deep groove ball bearing (150 mm bore x 320 mm outside diameter x 65 mm width). Factory-direct sourcing with complete dimensional and load-rating data available on this page. Request a quote for volume pricing, lead time and availability.
Bearing designation
Designation breakdown for 6330.
- 6330 Basic designation series 6300 · bore code 30, 150 mm
Product information
Units
Dimensions and mass
| Bore diameter (d) | 150 mm |
|---|---|
| Outer diameter (D) | 320 mm |
| Width (B) | 65 mm |
Basic load ratings
| Dynamic load rating (C) | 276 kN |
|---|---|
| Static load rating (C0) | 285 kN |
Speeds
| Reference speed | 4 300 r/min |
|---|---|
| Limiting speed | 2 800 r/min |
Design and properties
- Seal / Shield
- Open
- Internal Clearance
- CN normal
- Cage
- Sheet metal
- Rows
- Single row
- Material
- Bearing steel
Converted values are shown for convenience only. The metric figures are the published data.
Specifications are provided for product selection and may vary by configuration. Please contact us for confirmation before ordering.
